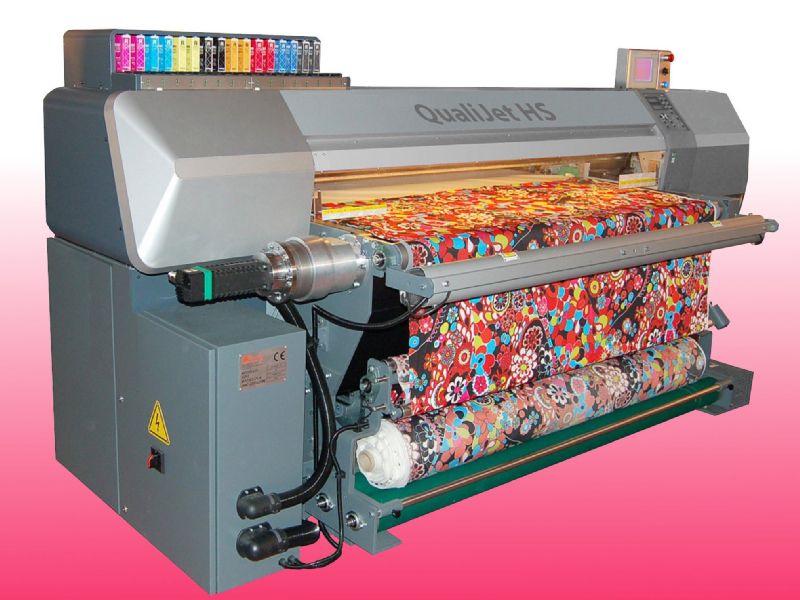

QUALIJET HS JV5 B

INK-JET PRINTERS - JV5 Series

TECHNICAL FEATURES - 4 extra wide 1440 nozzles piezo print heads - Each head 8 colours, 8 x180 nozzle rows - Automatic print head level adjustment from substrate: 0 -7 mm   (Optional manual print head lifting device to print on thick substrates: 0 - 8 cm) - Automatic print head cleaning cycle - automatic laser nozzles check - Print resolutions 540 - 720 - 900 - 1080 - 1440 dpi a 4,6,8 pass - mono & bidirectional - Fabric transport: Twin roll unwind unit with edge sensor - Adhesive blanket Twin roll rewind unit - Print width, roll size Maximum print width: 161 cm (63,3") - maximum fabric roll diameter: 28 cm. ( 11") - Print speed (See attachment) - Ink feed system 2 x 8 cartridges or optional external bulk feed system with 2 x 8 from 500 up to 1000 cc. tanks - Inks Acid, Reactive, Disperse, Sublimatic
